Air Gaging Accessories

The sky’s the limit!

Western Gage Corporation offers a comprehensive set of air gaging accessories. Accessories for readouts, probes, rings and all other dimensional air gages allow the operator to easily and quickly measure parts based on your configuration.  WGC offers different size handles, hoses of various lengths, bases, guides, couplings, right angle adapters, ejector stands, brackets and more!  We can even build custom accessories for your application!

Air Gaging Accessories

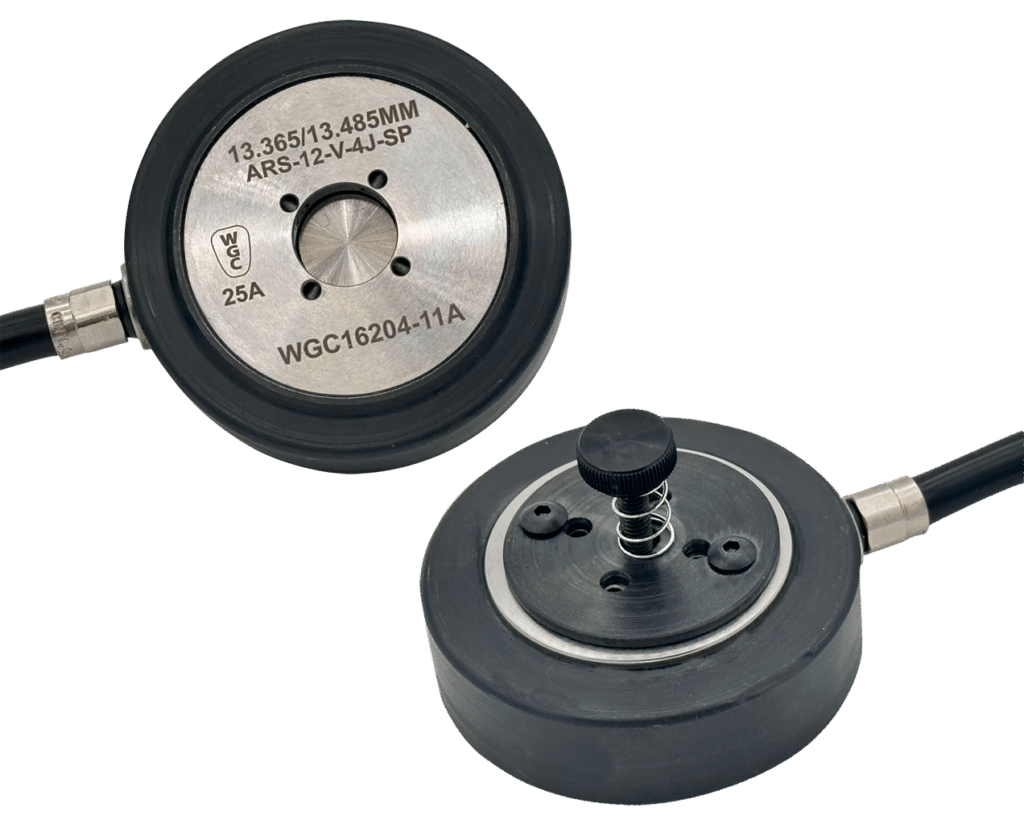

Spring Loaded Ejector

4 Jet Air Ring With Spring Loaded Ejector
Spring Loaded Ejector shown with 4-Jet Air Ring
A smart way to measure OD at exact datum points while quickly ejecting parts in a fast production environment.

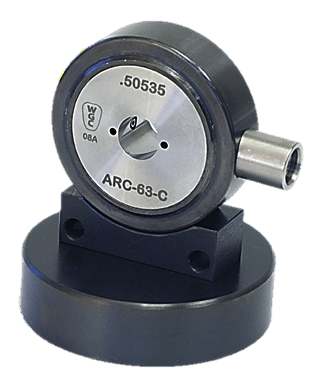

Mounted Air Ring on a Base Stand

Mounted Air Ring On A Base Stand
Base Stand shown with a Mounted Air Ring
Base stands offer a convenient way to secure and position your air ring for easier gaging of small and high volume parts.

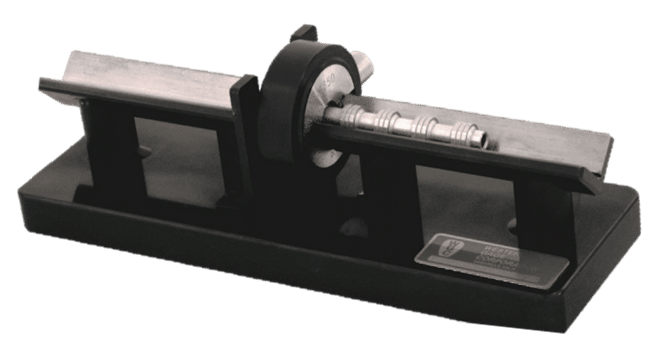

Mounted Air Ring on a V-Type Guide Chute

Mounted Air Ring On A V Type Guide Chute
V-Type Guide shown with a Mounted Air Ring
Provides a convenient means of gaging long parts with interrupted external diameters such as valve spools.  Chutes can be ordered as single end or double end.

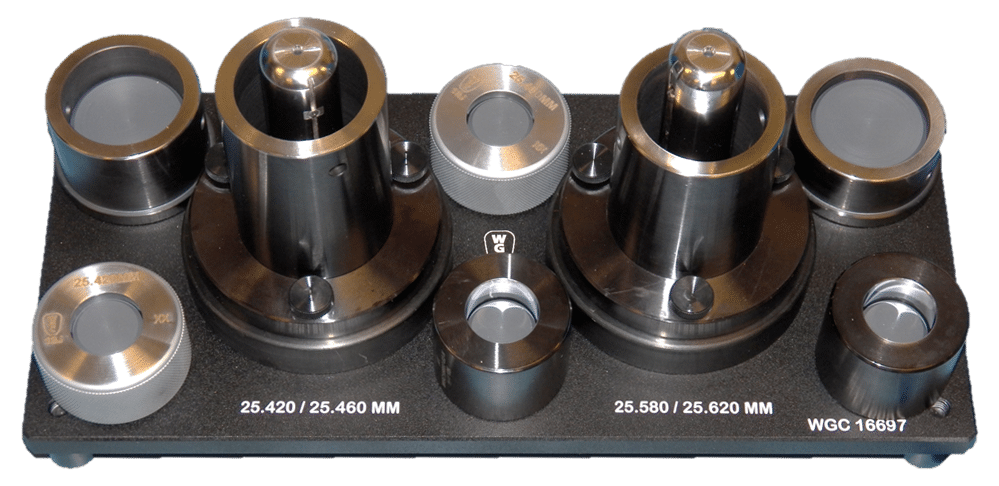

Air Gaging Work Station

Accessories Air Gaging Work Station
Air Gaging Work Stations are excellent for organizing matching sets of air probes, rings and masters. A holder sized for each component allows easy access and organization, prevents chipping, scratching and loss. Engraved with sizes and part IDs, work stations are custom made per your specifications.
