Air Gages For Aerospace Applications
(Air Ring Gage for Outer Diameter)
(Match fitting Air Ring for Piston OD & Air Probe for Housing ID)
(Inside Diameter)
(Air Ring and Air Probe for Inside & Outside Diameters)
Automotive
Automotive
Automotive

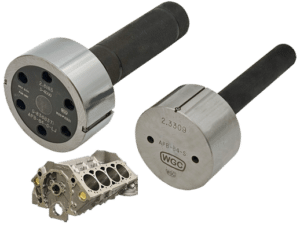

Large Air Probes with Handles for checking I.D.s of engine block bores along with Dual Circuit Air Probes that provide rapid inspection of valve guide internal diameters

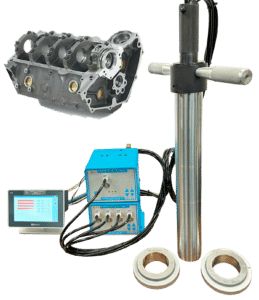

Large Four-Channel Air Probe for engine block main bore. Perfect for measuring inside diameter at different datum points or locations.

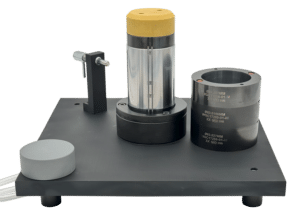

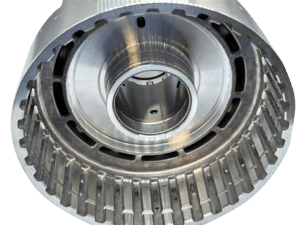

Mounted Multi-Channel Air Probes are ideal for Measuring the Inside Diameter of a Diesel Transmission Clutch Drum Center Shaft

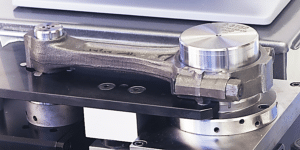

Connecting Rod Bend & Twist Gage checks parallelism and center distance between piston end and crank end bores.
Inspection systems include custom gaging fixture, quad AEK air-electric converter and Metro W-400 Readout.
Industrial
Industrial

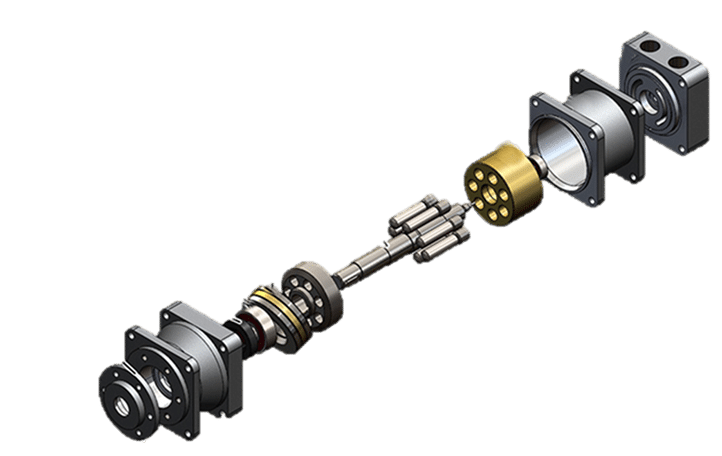

Industrial Hydraulics & Pumps

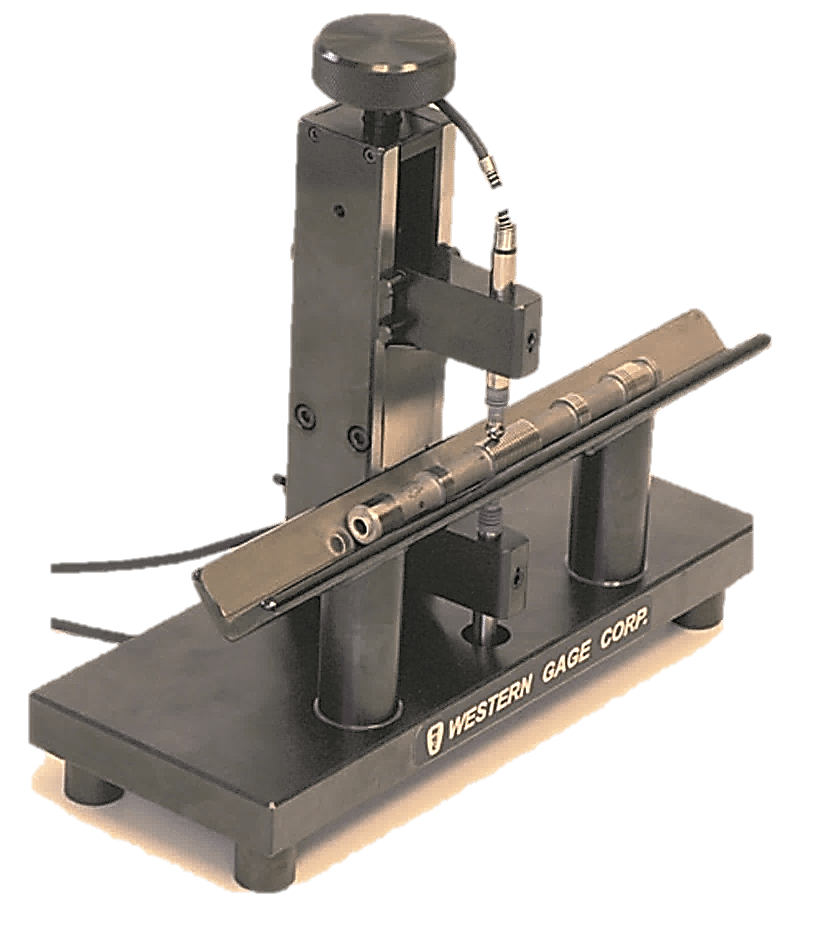

Vee Gage checks hydraulic valve spool O.D.s utilizing opposed sets of LVDT Probes. WGC also manufactures Piston Inspection fixtures that utilize LVDT Probes to check O.Ds. and Air Probe to check I.D.s. Air Rings are often used to check O.D.s of pistons also.
Bearings
Bearings
Bearings

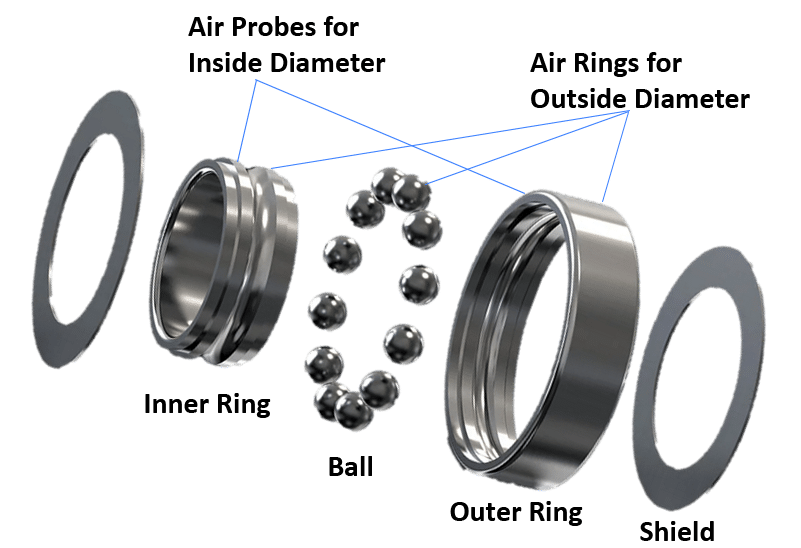

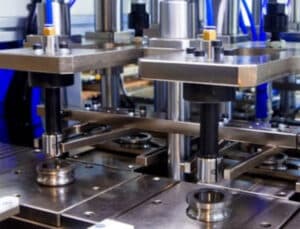

Air Probes for Bearing Inner Rings
Medical Devices
Medical Devices
Medical Devices

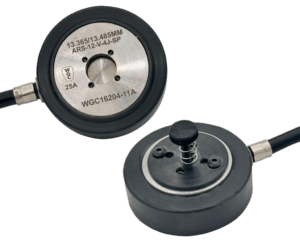

A Taper Air Ring with matching Master is a fast, precise and easy way of checking taper angles for self holding joints. Fast reading are achieved when connected to a Micro IIi that automatically calculates taper angle.

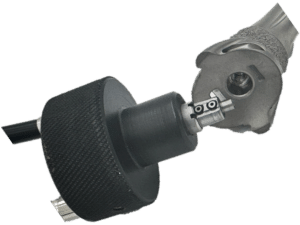

A Dual Circuit Taper Air Probe is an accurate way to easily check blind tapers in a small bore where exact tight tolerance angles are needed.
Other Applications
Other Applications
Other Applications
- Valve guide ID > Dual Circuit Probes
- Internal lands in hydraulic valve housings > Four Circuit Probes
- Valve housing straightness > Straightness Gage
- Wrist pin bores avg. diameters at two places > Dual Circuit Six-Jet Probe
- Bores with rough surfaces > Leaf Jet Probes
- Bores with lands too narrow for gaging with open jets > Leaf Jet Probes
- HSK machine tool tapers > Shoulder Seating Air Taper Gage
- Medical device tapers > Shoulder Seating Air Taper Gage
- Machine tool holders steep tapers > Taper Seating Design Gage

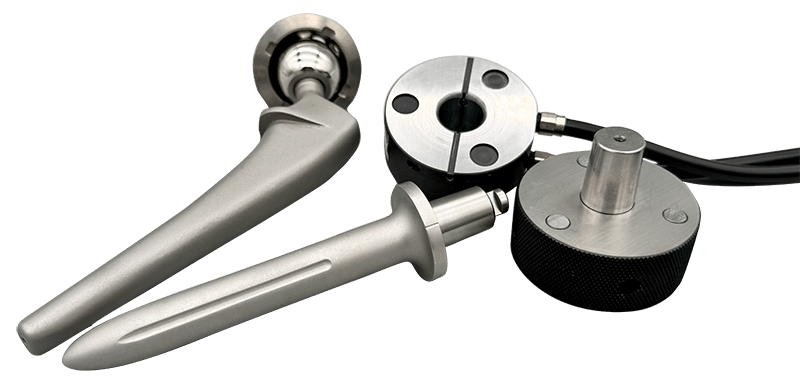

- Medical implant self-holding tapers > Multi-Circuit Taper Gage
- Femoral stem and ball socket > Multi-Circuit Taper Gage
- Gun barrels and ordinances > Rifling Gage
Dimensional Air Gaging for Any Industry
