Custom Gage Design Applications
COMPUTER WORKSTATIONS

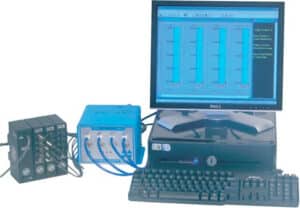

Computer Workstation with multi-channel Air Electric Converters (16 air channels total). Gaging fixture checks bearing housings by measuring and recording data for diameter, height, flatness, perpendicularity and concentricity.

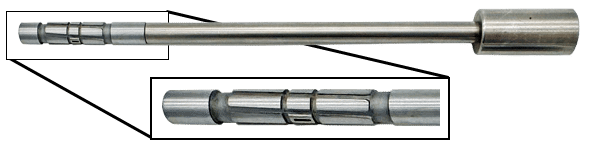

AIR GAGES FOR GUN BARRELS
Gage head for 22 caliber barrel.
Westerns O.D. air gages are available for use with all major air gage readouts (comparators):
- Western Micro-Air readouts
- Western dial type readouts
- Mahr-Federal Dimensionaires
- Sheffield columns
- Edmunds air comparators
- Etamic air comparators
- Contact us for additional makes & models
Air Ring Gages

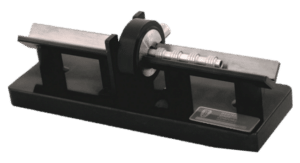

The air ring has a precision ground hardened steel body with built-in air gage nozzles. When the ring is slipped over the workpiece, the resulting back pressure is sensed by the air gage readout and displayed as the diameter of the part. Air rings come in 2 and 3-jet configurations. The 3-jet air ring checks for 3-lobe out-of-round conditions prevalent in centerless ground parts that can not be detected with a 2-point gage.
Air ring styles Center-jet style air rings have gaging nozzles in the center of the body; shoulder type have the nozzles near the edge.

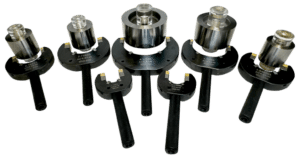

Air snap gages offer a convenient way to check crankshaft journals or similar parts.
Call, Fax or E-mail for price & delivery please specify:
- Air Gage Readout to be used
- Bore size & tolerance
- Style (thru-hole, blind-hole)
