Gages For Precise Measurement Of External Diameters

Air Rings

Mounted Air Ring On A V Type Guide Chute — Air Ring With “V” Type Guide Chute

Air Snap C Gages — Air “C” Type Snap Gage with Set Disc Masters

Westerns O.D. air gages are available for use with all major air gage readouts (comparators):

Western Micro-Air readouts
Western dial type readouts
Mahr-Federal Dimensionaires
Sheffield columns
Edmunds air comparators
Etamic air comparators
Contact us for additional makes & models

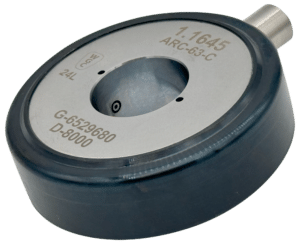

Air Ring Gages

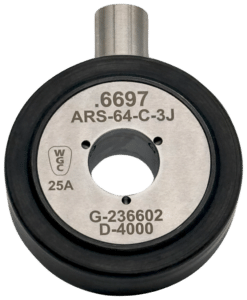

The air ring has a precision ground hardened steel body with built-in air gage nozzles. When the ring is slipped over the workpiece, the resulting back pressure is sensed by the air gage readout and displayed as the diameter of the part. Air rings come in 2 and 3-jet configurations. The 3-jet air ring checks for 3-lobe out-of-round conditions prevalent in centerless ground parts that can not be detected with a 2-point gage.

Air ring styles Center-jet style air rings have gaging nozzles in the center of the body; shoulder type have the nozzles near the edge.

Air snap gages offer a convenient way to check crankshaft journals or similar parts.

Call, Fax or E-mail for price & delivery please specify:

Air Gage Readout to be used
Bore size & tolerance
Style (thru-hole, blind-hole)
