Air Ring Gage Dimensional Data – Single & Dual Master

See page 27 for Air Ring Gage order codes

Series 10 – 50 (includes hose)

Dual Master
Air Ring Dimensional data, Series 10 thru 50
Air ring gage body dimensions ( inches / millimeters ):
Size
Dimension A
above -incl.ARCARSARXDim. BDia. D
.061 – .070*
1.55 – 1.78
.250
6.35

1.91
.500
12.70
1.73
43.94
.070 – .183
1.78 – 4.65
.281
7.14
.075
1.91
.562
14.27
1.73
43.94
.183 – .300
4.65 – 7.62
.281
7.14
.095
2.41
.080
2.03
.562
14.27
1.85
46.99
.300 – .760
7.62 – 19.30
.375
9.53
.095
2.41
.080
2.03
.750
19.05
2.31
58.67
.760 – 1.760
19.30 – 44.70
.500
12.70
.125
3.18
.085
2.16
1.000
25.40
3.31
84.07
1.760 – 3.010
44.70 – 76.45
.560
14.22
.125
3.18
.085
2.16
1.120
28.45
4.62
117.35
3.010 – 4.000
76.45 – 101.60
.625
15.88
.135
3.43
.090
2.29
1.250
31.75
5.87
149.10
4.000 – 4.875
101.60 – 123.83
.625
15.88
.135
3.43
.090
2.29
1.250
31.75
6.87
174.50
4.875 – 5.750
123.83 – 146.05
.625
15.88
.135
3.43
.090
2.29
1.250
31.75
7.87
199.90
5.750 – 6.625
146.05- 168.28
.625
15.88
.135
3.43
.090
2.29
1.250
31.75
8.87
225.50
6.625 – 7.500
168.28- 190.50
.625
15.88
.135
3.43
.090
2.29
1.250
31.75
9.87
250.70
Series 10, 40 & 50 fittings: Air ring gages are furnished
with 4 ft (1.22 mm ) hoses with .44-20 female flare fittings.
* Air ring sizes .061 to .183 are available in 3 jet, carbide only.

Series 60 – 80(Order hose separately — see pg 21)

Single Master
Air Ring Dimensional data, Series 60 thru 70
Air ring gage body dimensions ( inches / millimeters ):
Size
Dimension A
above -incl.ARCARSARXDim. BDia. D
.183 – .300
4.65 – 7.62
.281
7.14
.095
2.41
.080
2.03
.562
14.27
1.85
46.99
.300 – .760
7.62 – 19.30
.375
9.53
.095
2.41
.080
2.03
.750
19.05
2.31
58.67
.760 – 1.760
19.30 – 44.70
.500
12.70
.125
3.18
.085
2.16
1.000
25.40
3.31
84.07
1.760 – 3.010
44.70 – 76.45
.560
14.22
.125
3.18
.085
2.16
1.120
28.45
4.62
117.35
3.010 – 4.000
76.45 – 101.60
.625
15.88
.135
3.43
.090
2.29
1.250
31.75
5.87
149.10
4.000 – 4.875
101.60 – 123.83
.625
15.88
.135
3.43
.090
2.29
1.250
31.75
6.87
174.50
4.875 – 5.750
123.83 – 146.05
.625
15.88
.135
3.43
.090
2.29
1.250
31.75
7.87
199.90
5.750 – 6.625
146.05 – 158.75
.625
15.88
.135
3.43
.090
2.29
1.250
31.75
8.87
225.50
6.625 – 7.500
168.28- 190.50
.625
15.88
.135
3.43
.090
2.29
1.250
31.75
9.87
250.70
Fittings:
Series: 60 & 80 .375-32 UNEF fitting (order hose separately).
Series: 70 .281-40 UNS fitting (order hose separately).

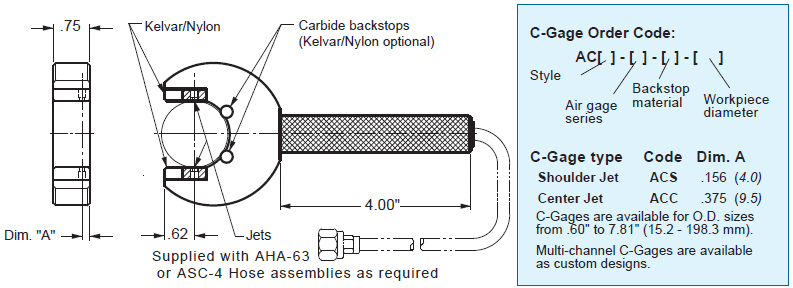

Air C-Gage Dimensional Data – Single & Dual Master

air-c-gage_dim-data

Base stands for air ring gages

Order codes for base stands
CodeRangeDia. ADia. B
ABA-0.120 – .183
(.3.05 – 4.65 mm)
1.73″2.94″
ABA-1.183 – .300
(4.65 – 7.62 mm)
1.85″2.94″
ABA-2.300 – .760
(7.62 – 19.30 mm)
2.313.94″
ABA-3.760 – 1.760
(19.30 – 44.70 mm)
???5.94″
ABA-41.760 -3.010
(44.70 – 76.45 mm)
4.63″5.94″
Requires factory drilled mounting holes in
the air ring housing

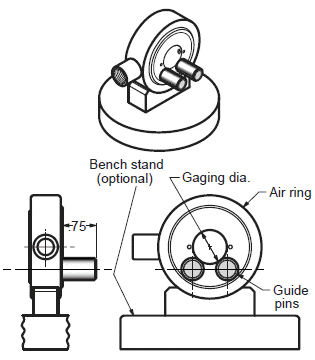

Guide pins

Guide pins can be added to an air ring gage to guide short parts. Consult factory for this modification.

Vee type Guide Chutes for air ring gages

Air Ring Gage Guide Chutes provide convenient means of gaging long parts with interrupted external diameters such as valve spools. Chutes can be ordered as single end or double end .

Dash
No.
Gaging
Range
Dimensions
A1A2BCD
-1.183-.3005.668.003.002.001.09
-2.300-.7606.7410.003.503.001.60
-3.760-1.7607.8712.004.003.502.46
41.760-2.3129.1314.005.004.132.65
Requires factory modification of air ring housing.


Plunger backstops

Plunger backstops facilitate inspection of short parts such as bearing races. Factory installation is required, specify Dim. L when ordering the air ring gage. Base stand with standoffs is optional.
